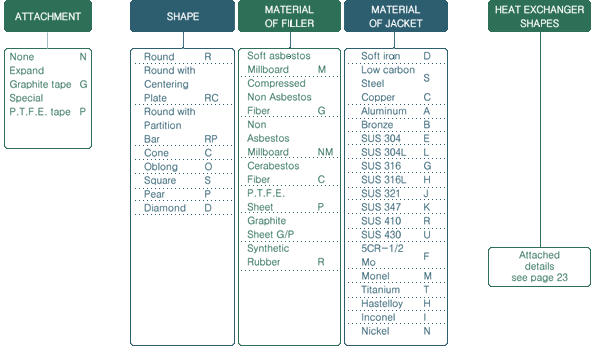

Gasket outside diameter, inside diameter and thickness are enough to design and manufacture round shape gasket without partition(s). However, the shapes and detailed dimensions of portion of partition bar must be furnished if the gasket is applied in multi-pass heat exchangers. The following dimensional list may be filled in ordering for correct fabrication. "Dimensional list of heat Exchanger."

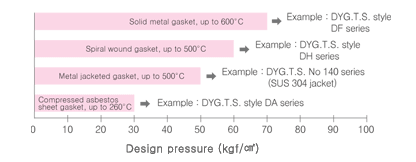

The gasket material is determined mainly by temperature and pressure. The illustration given at the right side is a guide for selection gasket material.
