홈 제품 정보 Non - Metallic Geskets

Compressed Non - Asbestos Joint Sheet JIC 6000 Compressed Non - Asbestos Joint Sheet JIC 6100 Wire Reinforced Compressed Non - Asbestos Joint Sheet JIC 6000W Wire Reinforced Compressed Non - Asbestos Joint Sheet C4408 Compressed Non - Asbestos Joint Sheet JIC 5700S Compressed Non - Asbestos Joint Sheet JIC 5072

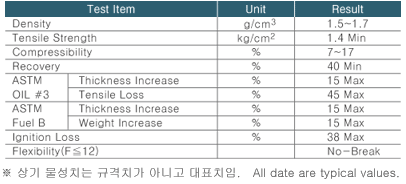

고품질의 비석면 석유와 내유성의 NBR 고무를 사용했기때문에 기름에 특히 안 전하며, 우수한 밀봉성을 발휘한다. This is manufactured by the hot calender process using high quality non-asbestos fibers and oil resistant synthetic rubber. Specially, this sheet has superior sealibi- lity with excellent oil resistance.

KS L 5406 CLASS 3 / JIS R 3453 CLASS 3 / ASTM F 104 P1141A

Temperature : 350℃ Max Pressure :30kg · f/㎠ Max. pH Range : 4-11 Water, Alkali, Salt Solution Below 30kg · f/㎠, 200℃ Organic Solvent Below 20kg ·f/㎠, 150℃ Hot Oil, Oil Gas, Freon Gas Below 20kg · f/㎠, 200℃

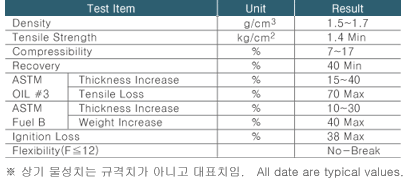

종래의 압축 석면판과 동일한 공정으로 압 연 가열, 성형한 것으로 내열성 합성 고무인 SBR과 비석면 섬유를 사용한 것 으로 내열성 및 복원성이 비석면 Gasket 로서 적합한 비석면 Sheet이다. This asbestos free jointing sheet is desig- ned specifically to perform and seal more effectively than other asbestos free gasket- ing materials. This sheet provides superior heat resistance and excellent recovery because of unique blends of synthetic fibers, filler and SBR binder.

KS L 5406 / JIS R 3453 / ASTM F 104 P1161A

Temperature : 350℃ Max. Pressure : 30kg · f/㎠ Max. Water : below 30kg · f/㎠, 300℃ Oil : below 20kg · f/㎠, 250℃ Gases : below 10kg · f/㎠, 250℃ Fluids : Air, Water, Oils, Mild Acids and Alkalies,             Inert Gases, Fuels Salt Solution, Lubricant
