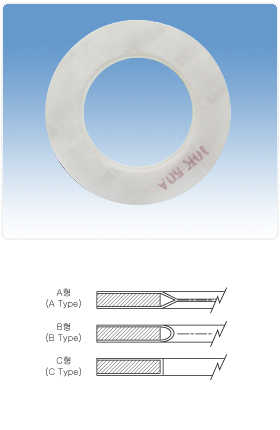

| This gasket is made from P.T.F.E. sheet with excellent elasticity and electric-insulating property.Glass or other filler material can be used for special service area-alkaline matallic organic chemical compounds, chemicals, solvents except fluoring under high temperature and hign pressure, oil gas, foods and medicines to avoid fluid contamination. |
 |
|
 |
|
Max. Temperature : 200 ℃
Max. Pressure : 20kg · f/㎠
알칼리 금속의 특수한 유기 화합물 및 고온, 고압하의 불소를 제외한 모든 화학약품 및
용제, 유가스, 유체 오염이 염려되는 식품, 의약품 등에 적용
Alkaline metallic organic chemical compounds, chemicals or solvent except flourine under high
temperature and high pressure, oil gas, food and medicines to avoid fluid contamination.
|
|
|
|
| This gasket is made from P.T.F.E. sheet with excellent elasticity and electric-insulating property. Glass or other filler material can be used for special service area-alkaline matallic organic chemical compounds, chemicals, solvents except fluoring under high temperature and high pressure, oil gas, foods and medicines to fluid contamination. |
|
 |
|
 |
|
Max. Temperature : 200 ℃
Max. Pressure : 20kg · f/㎠
탄력성이 풍부하므로 비교적 낮은 면압
으로 밀봉되며 강산, 강알칼리, 저온유체,
산소, 염소가스, 유기용제, 부식성유체,
오염이 염려되는 유체에 사용한다.
Elastic enough to perform a sealing ability by low face presure. Suitable for strong acid, strong alk-
ali, low temperature fluid, oxygen, cl2gas, orga-
nic solvents, corrosive fluid, etc. |
|
