Compressed Non-Asbestos Joint Sheet JIC 6000 Compressed Non-Asbestos Joint Sheet JIC 6100 Wrie Reinforced Compressed Non-Asbestos Joint Sheet JIC 6000W Wrie Reinforced Compressed Non-Asbestos Joint Sheet C4408 Compressed Non-Asbestos Joint Sheet JIC 5700S Compressed Non-Asbestos Joint Sheet JIC 5072

홈 제품 정보 Non - Metallic Geskets

Compressed Non - Asbestos Joint Sheet JIC 6000 Compressed Non - Asbestos Joint Sheet JIC 6100 Wire Reinforced Compressed Non - Asbestos Joint Sheet JIC 6000W Wire Reinforced Compressed Non - Asbestos Joint Sheet C4408 Compressed Non - Asbestos Joint Sheet JIC 5700S Compressed Non - Asbestos Joint Sheet JIC 5072

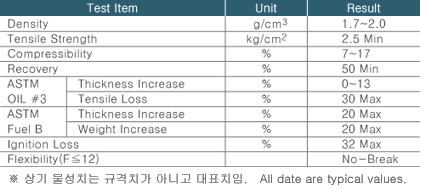

장섬유의 백석면에 내열 합성고무를 배합해서 제작한 압축석면판이다. 압축, 복원 및 인장강도 등 물성이 아주 우수하며, 특히 증기 Seal성이 우수한 고장력 만능 압축석면이다. Non-Asbestos fiber and heat-resistant synthetic rubber are compounded and calendered to a gasket sheet. It shows good compressibility, recovery and tensile strength with excellent sealing ability.

KS L 5406 CLASS 1 / JIS R 3453 CLASS 1 / ASTM F 104 P1161A

Temperature : 500℃ Max Pressure :50kg · f/㎠ Max. Oil Gas, Hot Oil : Below 250 ℃, 25kg · f/㎠ Steam : below 30kg · f/㎠ Hot Water, Acids, Alkalis, Brine Below 50kg · f/㎠

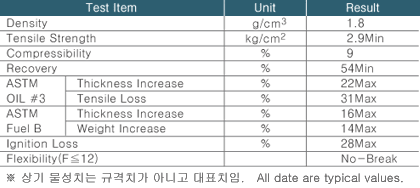

백석면에 특수한 내우 고무를 배합해서 제작한 압축 석면판이다. 일반적인 물성이 우수하며, 각종 기름에 대한 Seal성이 좋은 일반 내유용 압축석면판이다. Non-Asbestos fiber and oil resistant binder are compounded and calendered to a gasket sheet.It shows good properties and sealing ability against oils.

KS L 5406 CLASS 3 / JIS R 3453 CLASS 3 / ASTM F 104 P1141A

Temperature : 500℃ Max Pressure :50kg · f/㎠ Max. Hot Oil, Oil Gases : below 260 ℃, 25kg · f/㎠ Water, Alkalis, Salt Solutions Below 100℃ 50kg · f/㎠
