제품 정보 Non - Metallic Geskets
 |
||||||
|
||||||
 |

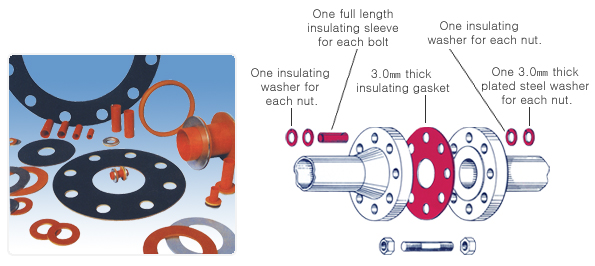

| Steel washers are supplied in 1/8" thick carbon steel plated for corrosion protection or stainless steel washers can be also supplied by request. |
| Unless otherwise specified, insulating washers are available in either reinforced phenolic or glass fiber reinforced epoxy. |
| Unless otherwise specified, these materials are availble in either polyethylens, P.T.F.E. or reinforced phenolic. The wall thickness of insulating sleeve is 0.8mm. |
| It is recommended that adhesive tape is wrapped around the outside diameter of the flange to prevent the ingress of foreign matter. Type FF and RF insulating gaskets are 3.0mm thick Neoprene faced phenolic laminate gasket, P.T.F.E. solid gasket or P.T.F.E. cushion gasket. Type RF insulating gasket is available in reinforced phenolic. DYG.T.S. flange insulating set gaskets are manufactured to suit ANSI, KS and other international recognized flange standards. |
